Aluminun TY Series T-connector of Hydraulic Compression Type

Share to:
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB,CFR,CIF,FCA
    Min. Order: 100 Bag/Bags
    Delivery Time: 10 Days

Basic Info

Material: Aluminium,Hot-dip Galvanized Steel

Application: Overhead Transmission Line

Sample: Free

OEM: ACCEPT

Size: Standard Or Customized

Certificate: ISO9001 ISO914001

Standard: GB/T 2314-2008 IEC 61284-1997

Color: Silver

Additional Info

Productivity: 14 million USD/per year

Brand: Chuandu

Place of Origin: Yangzhou City Jiangsu province China

Supply Ability: 10 million USD/per year

Certificate: ISO9001 OHSAS18001

HS Code: 7616991090

Port: Shanghai Port

Product Description

Aluminun TY Series T-connector of Hydraulic Compression Type

Alunminum Ty Series T-connector of Hydraulic Compression Type is mainly used in the bus or the main loop lead to electrical equipment and the other circuit lead wire connection, this kind of Splicing Fitting is also used in the two overhead cross T connection. According to the structure is divided into bolt type, compression type.

The splicing fitting Hydraulic Compression T Connector is qualified for sound electric contact performance by virtue of the integrated application for aluminum tube & conductor subjected to its interior pressure. In addition, its contact electrical resistance is apt to be stable while it's of reliable running condition, easy for maintenance.

Hydraulic Compression T Connector

The body is aluminium alloy, the other parts are hot-dip galvanized steel.

Catalog No.

Conductor Dia.

Dimensions(mm)

Weight(kg)

D

L1

L2

TY-120/7

LGJ-120/7

26

115

80

1.2

TY-120/20

LGJ-120/120

26

115

80

1.2

TY-150/8

LGJ-150/8

30

125

90

1.3

TY-150/20

LGJ-150/20

30

125

90

1.3

TY-185/10

LGJ-185/10

32

125

90

1.4

TY-185/20-30

LGJ-185/25-30

32

125

90

1.4

TY-210/10

LGJ-210/10

34

135

100

1.5

TY-210/25

LGJ-210/25

34

135

100

1.5

TY-240/30-40

LGJ-240/30-40

36

135

100

1.6

TY-300/15

LGJ-300/15

40

145

110

1.7

TY-300/20

LGJ-300/20

40

145

110

1.7

TY-300/25-40

LGJ-300/25-40

40

155

110

1.7

TY-400/25-35

LGJ-400/20-35

45

155

120

1.9

TY-400/50-65

LGJ-400/50-65

45

155

120

1.9

TY-400/50-65

LGJ-400/50-65

45

165

120

1.9

TY-500/35-45

LGJ-500/35-45

52

165

130

2.3

TY-630/45

LGJ-630/45

60

185

150

4.2

TY-630/55

LGJ-630/55

60

185

150

4.2

TY-630/80

LGJ-630/80

60

210

150

4.2

TY-800/55

LGJ-800/55

60

210

170

5.5

TY-300N

NRLH60GJ-300

50

205

295

3.5

TY-400N

NAHLGJQ-400

55

215

180

3.9

TY-500/35N

NAHLGJQ-500/35

65

290

345

6.2

TY-630/45N

NAHLGJQ-630/45

70

300

365

7.0

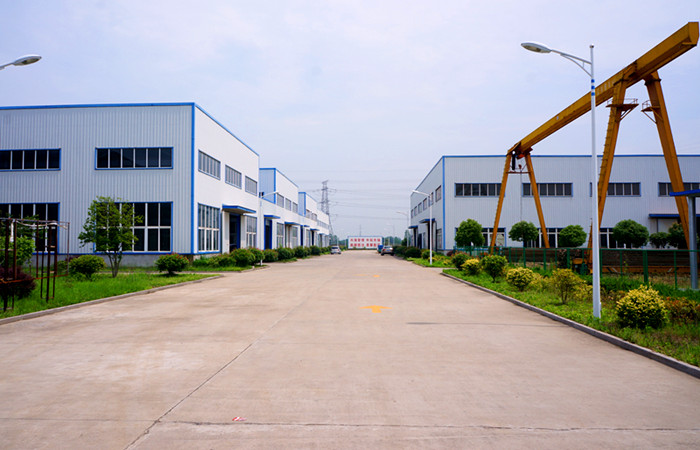

our factory

Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations. Our products covering: Suspension Clamp; Strain Clamp; Link Fitting; Protective Fitting; Preformed Fitting; Cable Terminal, etc.
