Parallel Groove Wire Clamps for Wire

Share to:
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB,CFR,CIF
    Min. Order: 100 Bag/Bags
    Delivery Time: 10 Days

Basic Info

Model No.: JB

Application: Overhead Transmission Line

Sample: Free

OEM: ACCEPT

Type: JBG

Certificate: ISO9001 ISO914001

Standard: GB/T 2314-2008 IEC 61284-1997

Weight(KG): 0.1-2.6

Conductor(mm): 4.5-37.0

Material: Silver

Additional Info

Packaging: Standard Wooden Case

Productivity: 14 million USD/per year

Brand: Chuandu

Transportation: Ocean,Land,Air

Place of Origin: Yangzhou City Jiangsu province China

Supply Ability: 10 million USD/per year

Certificate: ISO9001 OHSAS18001

HS Code: 7616991090

Port: Shanghai Port,Yangzhou Port

Product Description

Parallel Groove Wire Clamps for Wire

The Splice Line Connectors parallel groove wire clamps are used for connection of AL conductors according to DIN48201 & ACSR conductors according to DIN48204 with copper tap-off conductors according to 48201.
Material of PG clamp:
Body of Wire Splice Clamp Parallel Groove Clamp : High strength, corrosion-resistant, aluminum alloy (AL MgSi1) with hot forged bimetallic sheet, for copper tap-off.
Bolts oF PG clamp : Steel 8.8, DIN933, hot-dip galvanized.
Nuts of JB Aluminium Parallel Groove Clamp: Steel 8, DIN6796 corrosion-protected.
Conical washers: Steel, DIN6796 corrosion-protected.
Pressure pad: Aluminum alloy with spring washers DIN 127 hot-dip galvanize.

Parallel Groove Clamp Electrical Wire Clamp

Wire Splice Clamp PG Clamp

JB Aluminium Parallel Groove Clamp

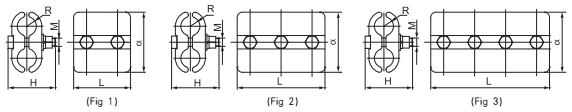

Catalog No.

Conductor Section

Area (MM2)

Dimensions (MM)

Weight

(KG)

Fig.

No.

α

M

L

R

H

JB-0

16-25

38

10

72

3.5

35

0.2

1

JB-1

25-50

46

12

80

5.0

45

0.1

1

JB-2

70-95

54

12

114

7.0

55

0.7

2

JB-3

120-150

64

16

140

8.5

60

1.1

2

JB-4

185-240

72

16

144

11.0

65

1.3

2

JB-5

300-460

100

20

215

15.5

110

2.5

3

JB-6

500-630

110

20

230

18.5

120

3.1

3

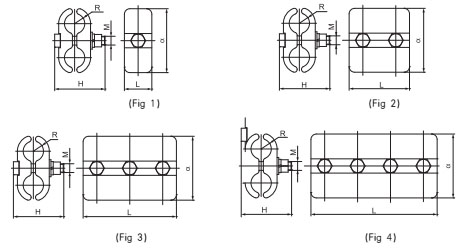

Pg clamp


Catalog No.

Conductor Dia (MM)

Dimensions (MM)

Weight

(KG)

Fig.

No.

H

L1

L2

R

JBG-1

4.5-11.5

60

36

43

6.0

0.1

1

JBG-2

11.5-14.0

55

60

52

7.0

0.4

2

JBG-3

14.0-17.0

65

72

58

8.0

0.6

2

JBG-4

17.0-22.0

70

80

72

11.0

0.8

2

JBG-5

22.0-28.0

75

115

88

14.0

1.3

3

JBG-6

28.0-37.0

90

175

108

18.5

2.6

4

Aluminium Copper Parallel Groove PG Clamp


Our factory

Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations. Our products covering: Suspension Clamp; Strain Clamp; Link Fitting; Protective Fitting; Preformed Fitting; Cable Terminal, etc.

overhead transmission line fitting manufacturer

distribution line fitting supplier

Manufacturing Workshop

pole line hardware

line accessories

electric power fitting

electric power fitting


Looking for ideal Parallel Groove Clamp Electrical Wire Clamp Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Wire Splice Clamp PG Clamp are quality guaranteed. We are China Origin Factory of JB Aluminium Parallel Groove Clamp. If you have any question, please feel free to contact us.
