Parallel Groove Cable Connector With Bolts

Share to:
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB,CFR,CIF
    Min. Order: 100 Bag/Bags
    Delivery Time: 10 Days

Basic Info

Model No.: JB

Application: Overhead Transmission Line

Sample: Free

OEM: ACCEPT

Type: JBG

Certificate: ISO9001 ISO914001

Standard: GB/T 2314-2008 IEC 61284-1997

Weight(KG): 0.1-2.6

Conductor(mm): 4.5-37.0

Material: Silver

Additional Info

Packaging: Standard Wooden Case

Productivity: 14 million USD/per year

Brand: Chuandu

Transportation: Ocean,Land,Air

Place of Origin: Yangzhou City Jiangsu province China

Supply Ability: 10 million USD/per year

Certificate: ISO9001 OHSAS18001

HS Code: 7616991090

Port: Shanghai Port,Yangzhou Port

Product Description

Parallel Groove Cable Connector With Bolts

The parallel groove clamp is used for the connection of the small cross-section of the aluminum strand or ACSR, but also for non-linear tower jumper connection.

The Splicing Fitting is primarily used to join kinds of bare conductors and lightning conductors. It bears the same electric load as conductors. Most splicing fittings bear all the tension of conductors, ground wires and lightning conductors.

According to the tensile condition, splicing fittings include force-bearing type and non-force-bearing type.

Splicing fittings are generally divided into compression type and preformed type.And the compression type includes hydraulic compression, explosive compression and compression with pliers.

Generally, malleable cast iron, steel, and aluminum alloy are used a it's materials.

All the ferrous metal should be hot-dip galvanized.

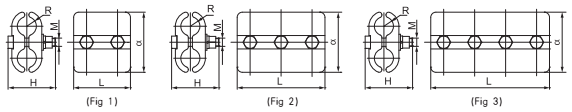

Parallel Groove

PG clamp (2)

Catalog No.

Conductor Section

Area (MM2)

Dimensions (MM)

Weight

(KG)

Fig.

No.

α

M

L

R

H

JB-0

16-25

38

10

72

3.5

35

0.2

1

JB-1

25-50

46

12

80

5.0

45

0.1

1

JB-2

70-95

54

12

114

7.0

55

0.7

2

JB-3

120-150

64

16

140

8.5

60

1.1

2

JB-4

185-240

72

16

144

11.0

65

1.3

2

JB-5

300-460

100

20

215

15.5

110

2.5

3

JB-6

500-630

110

20

230

18.5

120

3.1

3

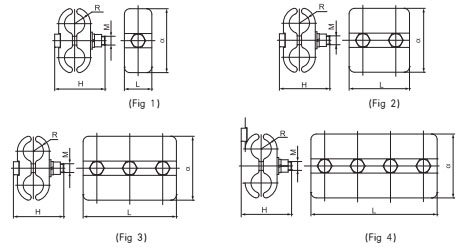

Pg clamp


Catalog No.

Conductor Dia (MM)

Dimensions (MM)

Weight

(KG)

Fig.

No.

H

L1

L2

R

JBG-1

4.5-11.5

60

36

43

6.0

0.1

1

JBG-2

11.5-14.0

55

60

52

7.0

0.4

2

JBG-3

14.0-17.0

65

72

58

8.0

0.6

2

JBG-4

17.0-22.0

70

80

72

11.0

0.8

2

JBG-5

22.0-28.0

75

115

88

14.0

1.3

3

JBG-6

28.0-37.0

90

175

108

18.5

2.6

4

Best Price Guy Parallel Groove Clamp

Our factory

Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations. Our products covering: Suspension Clamp; Strain Clamp; Link Fitting; Protective Fitting; Preformed Fitting; Splicing Fitting; Cable Terminal, etc.

overhead transmission line fitting manufacturer

distribution line fitting supplier

Manufacturing Workshop

pole line hardware

line accessories

electric power fitting

electric power fitting


Looking for ideal Best Price Guy Parallel Groove Clamp Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the JB Parallel Groove Clamp are quality guaranteed. We are China Origin Factory of Parallel Groove Clamps for Steel Wire. If you have any question, please feel free to contact us.
