Yoke Plate For Link Fitting

Share to:
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB,CFR,CIF,FCA
    Min. Order: 100 Bag/Bags
    Delivery Time: 10 Days

Basic Info

Model No.: LJ/BL/BN/LBD

Material: Hot-dip Galvanized Steel

Application: Overhead Transmission Line

Sample: Free

OEM: ACCEPT

Size: Standard Or Customized

Certificate: ISO9001 ISO914001

Standard: GB/T 2314-2008 IEC 61284-1997

Color: Silver

Additional Info

Packaging: Standard Wooden Case

Productivity: 14 million USD/per year

Brand: Chuandu

Transportation: Ocean,Land,Air

Place of Origin: Yangzhou City Jiangsu province China

Supply Ability: 10 million USD/per year

Certificate: ISO9001 OHSAS18001

HS Code: 7616991090

Port: Shanghai Port

Product Description

Yoke Plate For Link Fitting

The yoke plate is plate-shaped link fitting which is mainly used to connect insulator strings or assemble the load-bearing branches into a integral.

Yoke plates are used for strain equalizing of insulator string as well as spacing of sub-conductor, Up to 220KV single conductor system for important locations like Highway crossing.

Plate

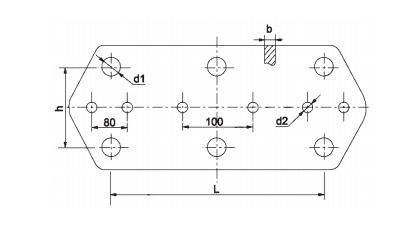

Yoke Plate (Type L J)


Yoke Plate for Electric Power Hardware

Catalog

No.

Dimensions (MM)

Rated Failure Load (KN)

Weight (KG)

b

d1

d2

h

L

L J-1040

16

18

20

70

400

100

6.5

L J-1240

16

18

24

70

400

120

6.5

L J-1640

18

20

26

100

400

160

9.5

Yoke Plate for Electric Power Hardware

Catalog

No.

Dimensions (MM)

Rated Failure Load (KN)

Weight (KG)

b

d1

d2

h

L

L J-2540

16

24

18

120

400

250

11.0

L J-3040

18

26

18

120

400

300

13.6

L J-3045

18

26

18

120

450

300

13.2

Yoke Plate (Type BN)
Yoke Plate for Electric Power Accessories

Catalog

Dimensions (MM)

Rated Failure Load (KN)

Weight (KG)

No.

b

d1

d2

h

L

S1

S2

S3

BN2--16

22

14

26

100

400

50

40

80

160

10

BN2--20

22

14

26

100

400

50

40

80

200

10

Yoke Plate (Type BL)

Yoke Plate Types for Overhead Transmission Line

Catalog

No.

Dimensions (MM)

Rated Failure Load (KN)

Weight (KG)

b

d1

d2

d3

h

L

S

S1

S2

BL-1240

16

18

24

24

--

400

240

--

--

120

7.8

BL-12

16

18

20

20

85

400

80

50

40

120

9.3

BN2-1640R

18

14

26

26

100

400

80

50

40

160

11.5

BN-20

18

14

26

26

120

400

--

50

40

200

17.6

BN2-30

22

14

26

26

120

400

80

50

40

300

20.3

Yoke Plate (Type LBD)

Yoke Plate for Distribution line Hardware

Catalog

No.

Dimensions (MM)

Rated Failure Load (KN)

Weight (KG)

b

d1

d2

d3

h

L

LBD-0740

16

18

18

18

95

400

70

9.0

LBD-0740A

16

18

18

14

150

400

70

12.2

LBD-1040

18

20

18

18

100

400

100


LBD-1240

16

24

18

18

95

400

120

9.0

LBD-1640

18

26

26

14

100

400

160

12.5

LBD-1640R

18

26

26

26

100

400

160

12.5

LBD-1645

18

26

26

14

100

400

160

12.2

our factory

Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations. Our products covering: Suspension Clamp; Strain Clamp; Link fitting; Protective Fitting; Preformed Fitting; Splicing Fitting; Cable Terminal, etc.

overhead transmission line fitting manufacturer

distribution line fitting supplier

Manufacturing Workshop

pole line hardware

line accessories

electric power fitting

electric power fitting


Looking for ideal Galvanized Yoke Plate Type LJ Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Yoke Plate for Electric Power Hardware are quality guaranteed. We are China Origin Factory of Yoke Plate Types for Transmission Line. If you have any question, please feel free to contact us.
