Home > Products > Line Fitting > Link Fitting > Yoke Plate Hardware For Overhead Transmission Line

Yoke Plate Hardware For Overhead Transmission Line

Share to:
    Payment Type: L/C,T/T,Paypal
    Incoterm: FOB,CFR,CIF,FCA
    Min. Order: 100 Bag/Bags
    Delivery Time: 10 Days

Basic Info

Model No.: LX

Material: Hot-dip Galvanized Steel

Application: Overhead Transmission Line

Sample: Free

OEM: ACCEPT

Size: Standard Or Customized

Certificate: ISO9001 ISO914001

Standard: GB/T 2314-2008 IEC 61284-1997

Color: Silver

Additional Info

Packaging: Standard Wooden Case

Productivity: 14 million USD/per year

Brand: Chuandu

Transportation: Ocean,Land,Air

Place of Origin: Yangzhou City Jiangsu province China

Supply Ability: 10 million USD/per year

Certificate: ISO9001 OHSAS18001

HS Code: 7616991090

Port: Shanghai Port

Product Description

Yoke Plate Hardware For Overhead Transmission Line

The yoke plate is plate-shaped Link Fitting which is mainly used to connect insulator strings or assemble the load-bearing branches into a integral.

Line Fittings are metal parts used to connect transmission line towers, conductors, lightning wires and insulators, or protect conductors, lightning wires, insulators and so on. They are usually made of cast steel and malleable iron. For special application of open profile insulators having large diameter it may be necessary to increase the sub-conductor spacing upto 600mm.

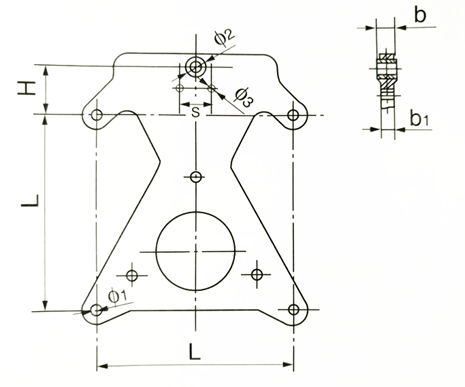

Lx Yoke Plate

Type LX Galvanized Yoke Plate

Catalog No.

Dimensions (MM)

Rated Failure Load (KN)

Weight (KG)

L

H

Φ1

Φ2

Φ3

b

b1

S

LX-1645

450

95

20

26

28

28

28

80

160

26.0

LX-2145

450

95

18

30

-

26

18

-

210

20.0

LX-2545

450

95

20

33

18

30

18

80

250

25.5

LX-3045

450

95

24

39

14

32

18

80

300

27.1

LX-3245

450

95

20

39

-

32

18

-

320

27.4

LX-4245

450

100

22

39

18

22

22

60

420

35.4

LX-1645A

450

95

20

26

18

18

18

80

160

26.0

LX-2145S

450

95

18

26

18

20

16

80

210

21.3

LX-2150S

500

95

18

26

18

20

16

80

210

25.5

LX-3250S

500

95

20

33

18

28

18

80

320

29.0

LX-4250S

450

95

20

39

18

32

18

80

420

29.0

LX-6450S

500

95

20

45

18

36

18

80

640

30.5

our factory

Jiangsu Chuandu Electrical Technology Co.,ltd is specialized in Electric Power fitting for 18 years.The company was founded in 1999 with the registered capital reaching RMB 100 million, covers an area of 41000 ㎡.The company is a technology-based manufacturing-type enterprise which mainly produces and sells electrical fittings of various specifications and types for high and low voltage transmission and power stations. Our products covering: Suspension Clamp; Strain Clamp; Link fitting; Protective Fitting; Preformed Fitting; Line Fitting; Cable Terminal, etc.

overhead transmission line fitting manufacturer

distribution line fitting supplier

Manufacturing Workshop

pole line hardware

line accessories

electric power fitting

electric power fitting


Looking for ideal HDG Steel LX Type Yoke Plates Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Type LX Galvanized Yoke Plate are quality guaranteed. We are China Origin Factory of LX-Type Grid Facility Link Yoke Plate. If you have any question, please feel free to contact us.
